BM3000 Cryogenic Pipe Bayonet Series
High-Performance Vacuum Insulated Pipe Bayonet Assemblies
Cryocomp BM3000 Cryogenic Bayonet Assemblies are high-performance cryogenic bayonet connections designed for vacuum insulated piping systems and vacuum-jacketed transfer lines. Engineered for low heat leak, fast installation, and reliable operation, these assemblies provide efficient cryogenic fluid transfer while minimizing thermal loss and boil-off.
Available in ½” and 1″ pipe sizes with a 150 PSI MAWP, precision-machined male and female components form a tight-tolerance vapor lock seal between process and ambient temperatures—eliminating the need for a nose seal. This advanced design reduces heat leak, prevents frost buildup, and ensures consistent, leak-free performance in demanding cryogenic environments.
The BM3000 series supports both vertical and horizontal installation. A clamped connection allows quick assembly and easy disassembly, reducing field installation time and overall system costs.
A complete assembly includes a male and female bayonet, V-band clamp, and O-ring. Complete assemblies can be ordered by adding “SB” to the part number (e.g., BM3049-SB).
½" IPS BAYONET — 9" THERMAL LENGTH

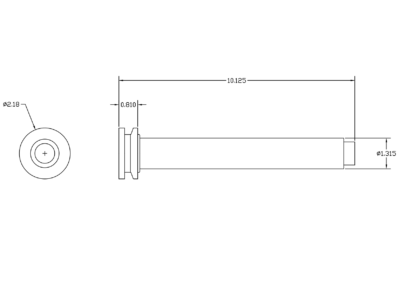

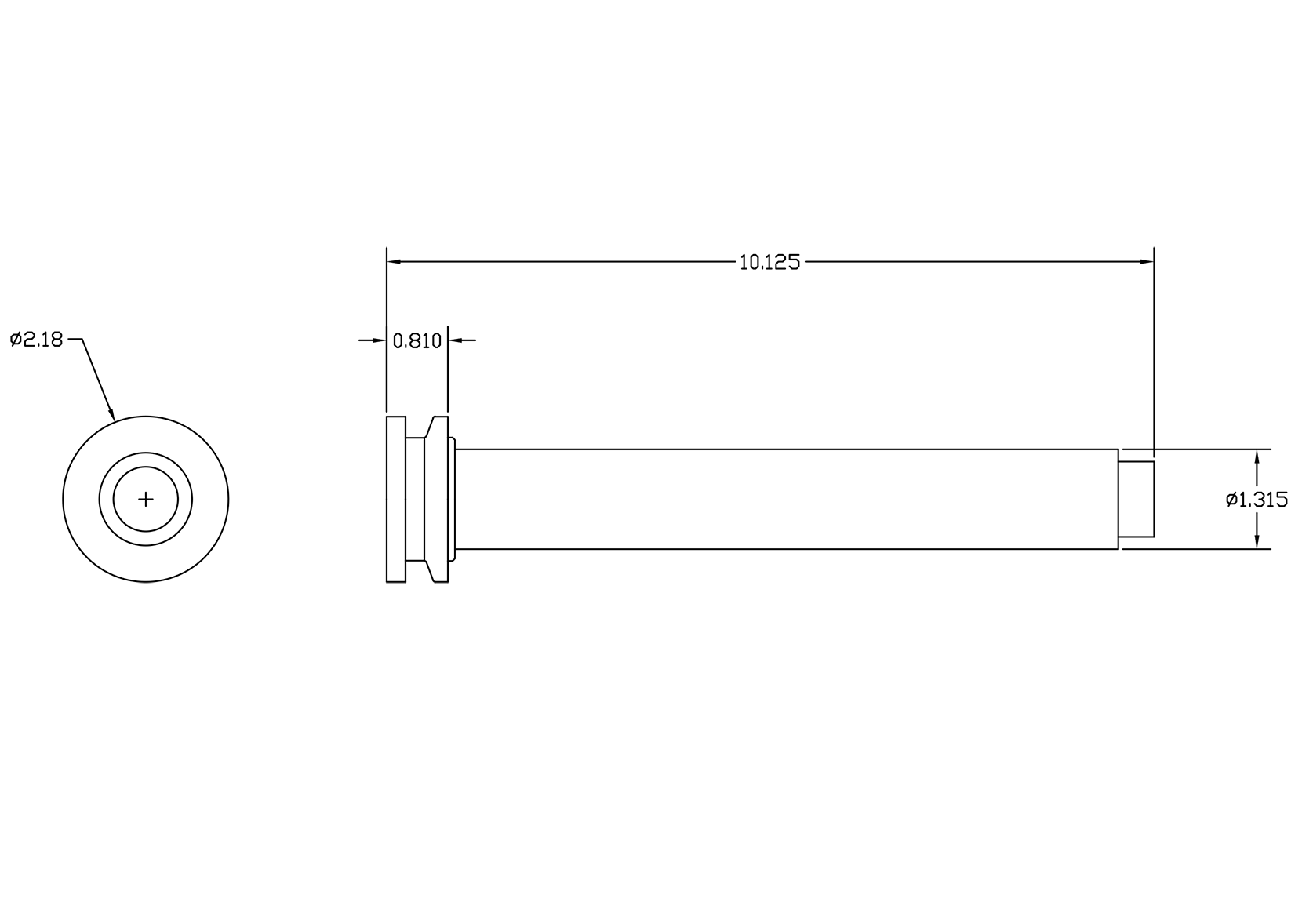

BM3049-MB | ½” × 9″ Male Bayonet

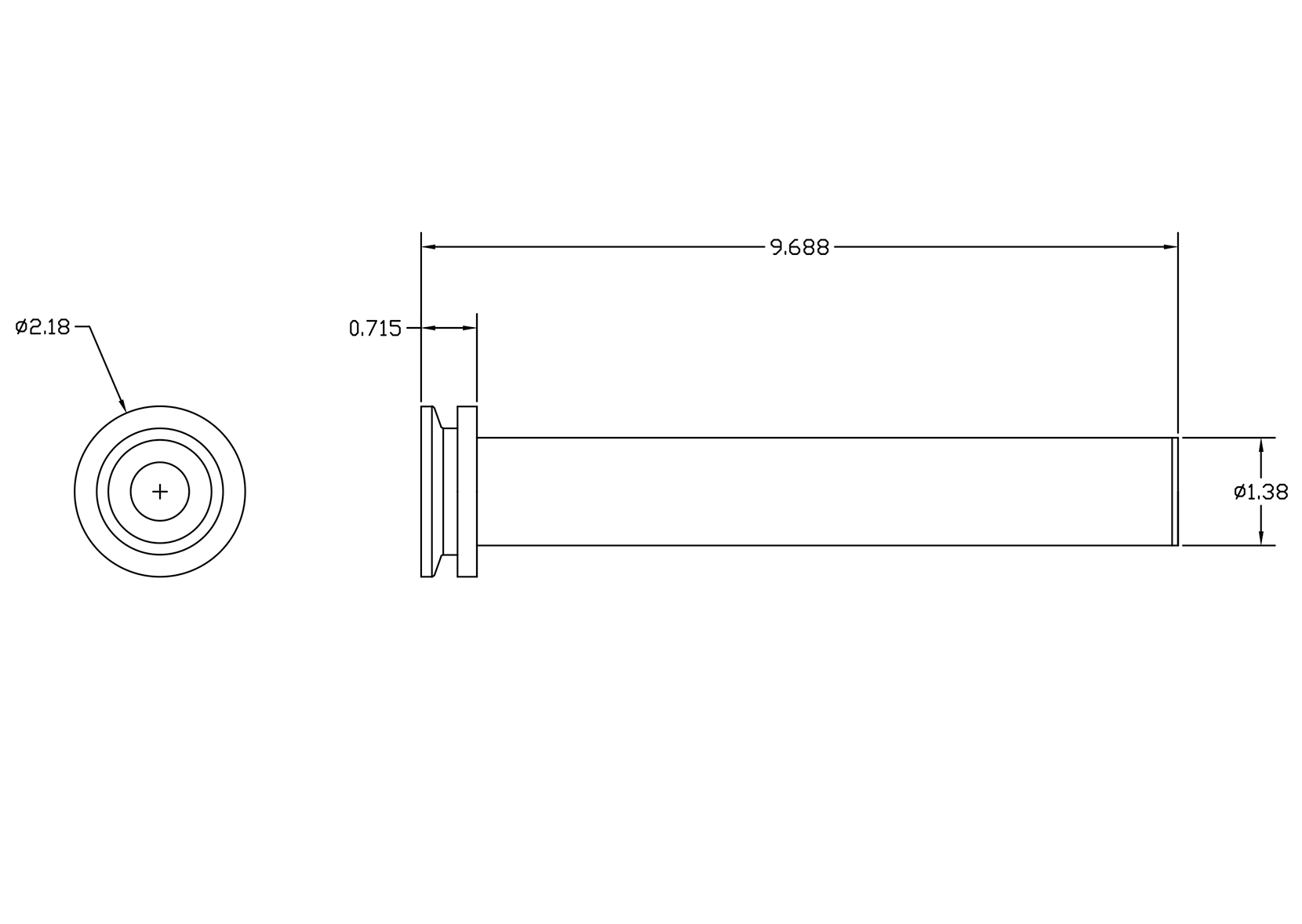

BM3049-FB | ½” × 9″ Female Bayonet
- Type Male
- Pipe Size ½” IPS
- Length 9″
- A 2.21″
- B 3.50″
- C 9.24″
- D 0.85″
- E —
- Seal 2-224
- Type Female
- Pipe Size ½” IPS
- Length 9″
- A 2.21″
- B 3.50″
- C 9.65“
- D 0.85″
- E 0.10″
- Clamp BM3049-VB
½” IPS COMPONENTS
| Part No. | Type | Pipe Size | Length | A | B | C | D | E | Seal / Clamp |
|---|---|---|---|---|---|---|---|---|---|
| BM3049-MB | Male | ½” IPS | 9″ | 2.21″ | 3.50″ | 9.24″ | 0.85″ | — | Seal: 2-224 |
| BM3049-FB | Female | ½” IPS | 9″ | 2.21″ | 3.50″ | 9.65″ | 0.85″ | 0.10″ | Clamp: BM3049-VB |
1" IPS BAYONET — 12" THERMAL LENGTH

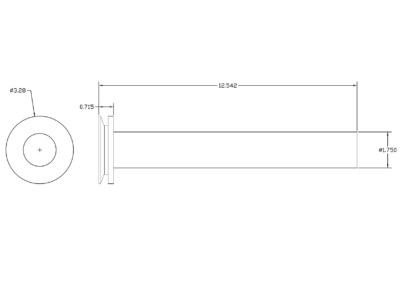

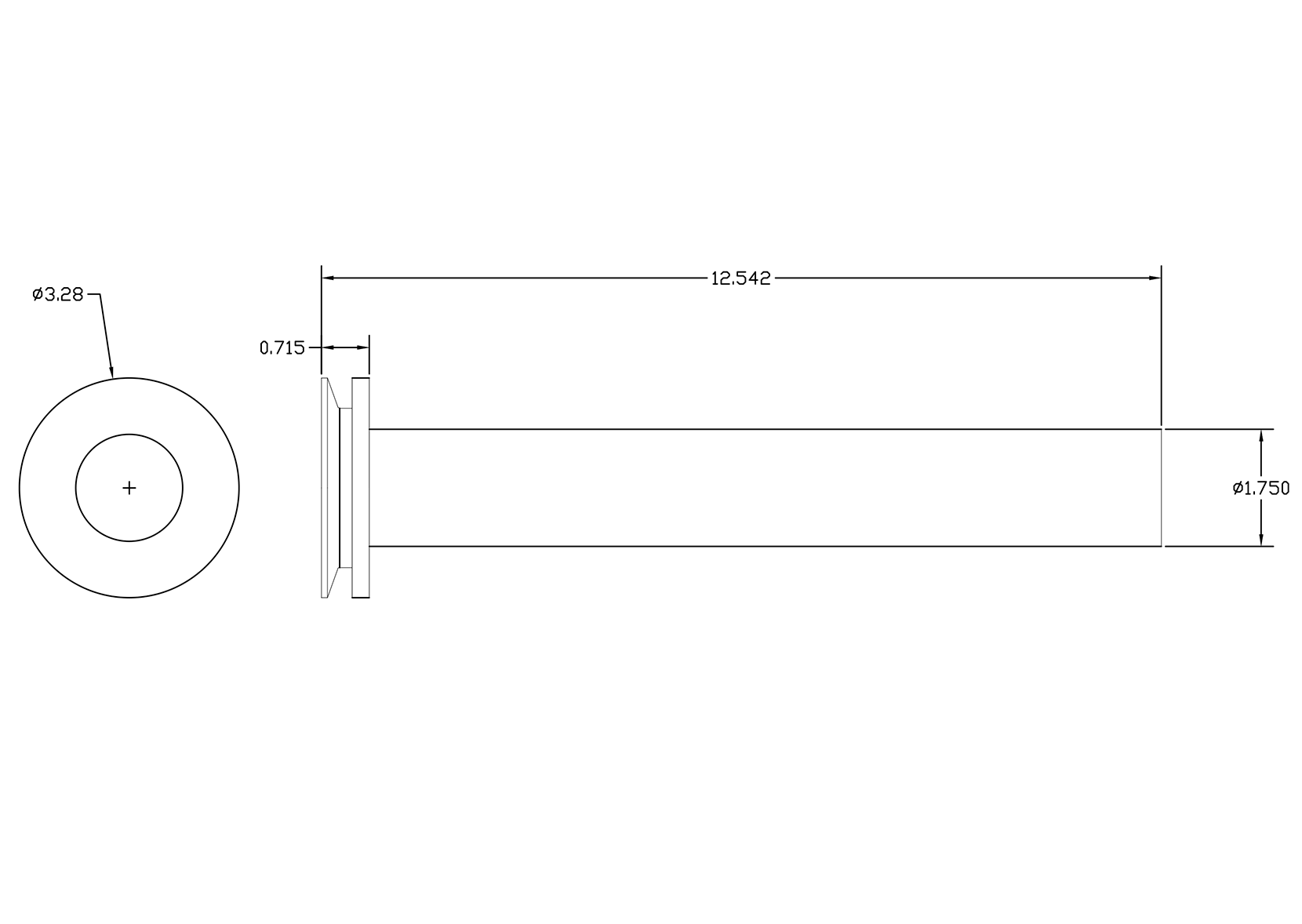

BM30812-FB | 1″ × 12″ Female Bayonet

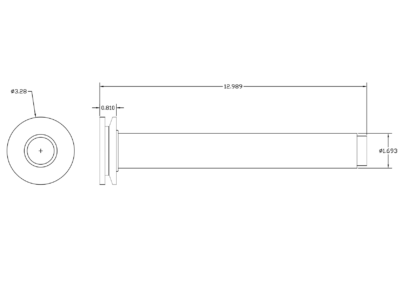

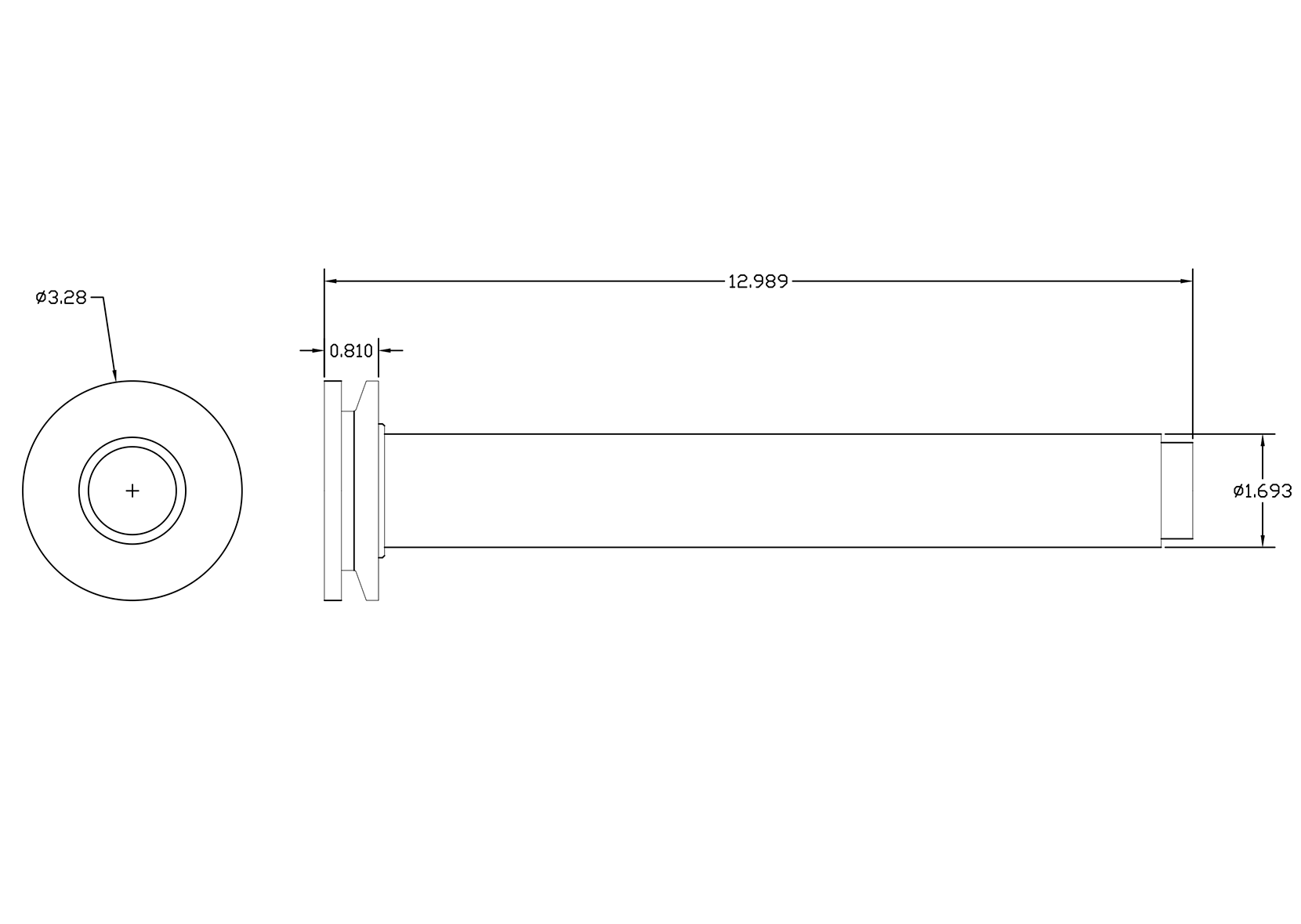

BM30812-MB | 1″ × 12″ Male Bayonet
- Type Male
- Pipe Size 1″ IPS
- Length 12“
- A 2.69“
- B 3.50″
- C 12.24“
- D 1.32“
- E —
- Seal 2-329
- Type Female
- Pipe Size 1″ IPS
- Length 12″
- A 2.69″
- B 3.80″
- C 12.65“
- D 1.32“
- E 0.10″
- Clamp BM30812-VB
1″ IPS COMPONENTS
| Part No. | Type | Pipe Size | Length | A (in) | B (in) | C (in) | D (in) | E (in) | Seal / Clamp |
|---|---|---|---|---|---|---|---|---|---|
| BM30812-MB | Male | 1″ IPS | 12″ | 2.69 | 3.50 | 12.24 | 1.32 | — | Seal: 2-329 |
| BM30812-FB | Female | 1″ IPS | 12″ | 2.69 | 3.80 | 12.65 | 1.32 | 0.10 | Clamp: BM30812-VB |
Already Using A Cryocomp Bayonet?
The BM3000 is a new series and is not a drop-in replacement for the original B3000 bayonet. If you have B3000 bayonets in the field and need replacement parts or matching components, please visit the B3000 series page.
Need help selecting the right bayonet for your system?
Quick Specs
Sizes: ½" & 1" IPS
Lengths: 9" (½") | 12" (1")
MAWP: 150 PSIG
Closure: V-Band Clamp
Orientation: Vertical or Horizontal
Technical Data
- Highly Efficient and Reliable Close Tolerance Design for Vertical or Horizontal Applications.
- Highly efficient and reliable close-tolerance design for vertical or horizontal applications
- Designed for fast and convenient installation for piping fabricators
- No clamshell required
- MAWP: 150 PSIG
- All internal components leak tested to 1×10-9 SCC GHe/SEC
- Convenient V-band closure
- Bolted flange optional
Applications
- Vacuum Insulated Flex Lines
- Cold Box Interface Connections
- Tank and Truck Fill Connections
- Typically used with liquid nitrogen, liquid hydrogen, liquid helium and may be used with liquid oxygen with proper cleaning
THERMAL DATA — LN2 @78°K
BM3049 (1/2″ )
• 9″ insertion length heatleak = 8.4 BTU/HR
BM30812 (1.0″ )
• 12″ insertion length heatleak = 6.3 BTU/HR
Cooldown Mass: 0.8 LBS.
Ordering Complete Assemblies
Each size bayonet is available as individual male or female components, or as a complete set. A complete assembly includes the male bayonet, female bayonet, V-band clamp, and O-ring.
To order a complete set, append “SB” to the part number — for example, BM3049-SB for the complete ½” × 9″ assembly.
Call 1.908.686.3643 for more information or assistance specifying your bayonet.
DOCUMENTATION
Coming Soon
