C2000 Online Cryogenic Valve Builder
Vacuum Jacketed Valves for Cryogenic Liquid Service

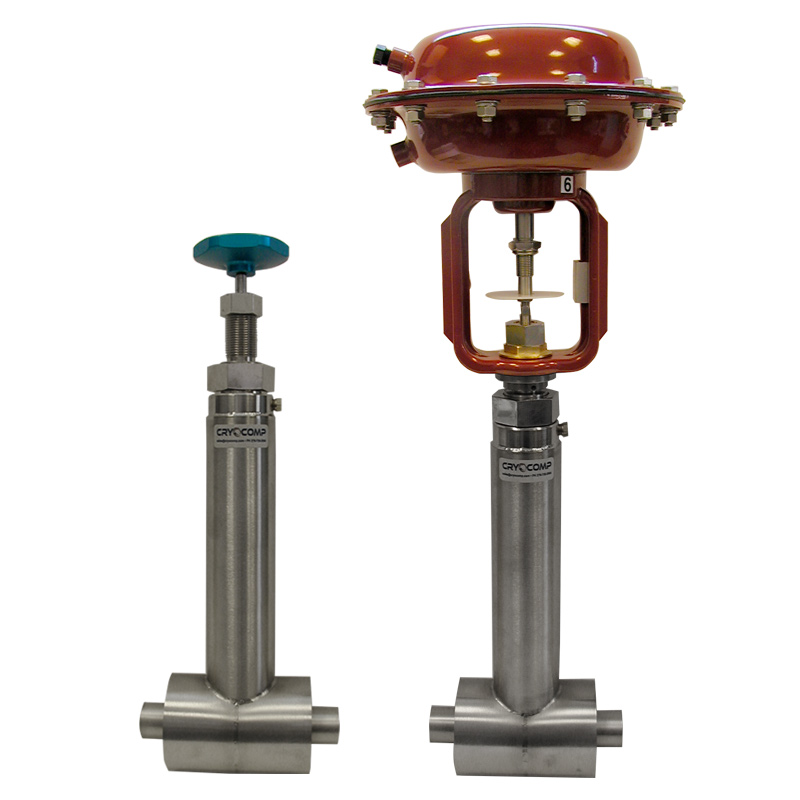

The Cryocomp C2000 Series provides versatile, field-maintainable vacuum jacketed valves for liquid nitrogen, argon, oxygen, helium, and other cryogenic liquids. Available from ½" pipe to 2" pipe with adapters to tube sizes. The body of the valve can be in globe, right angle, or Y-pattern style. Choose from manual and actuated operation options including pneumatic, solenoid, and valve positioners.
Key Features
- Interchangeable stem assemblies — stem, seat, and packing replace in-line without removing the valve body, minimizing downtime. Globe, right angle, and Y-pattern body styles all share the same assembly, simplifying spare parts inventory
- Extended stem design — keeps the handle and packing gland at ambient temperature, away from the cryogenic fluid
- Flexible actuation on the same body — manual, pneumatic NC/NO, and solenoid without body modification
- Characterized flow plugs available — standard, equal percentage, or linear trim as a factory option for flow control applications
- Oxygen service available — CGA G-4.1 cleaning; specify with order
Compatible Fluids
Liquid helium*
Liquid hydrogenLiquid argon
Liquid oxygen
LNG
CO₂
*The C3000 Series is a popular choice for liquid helium systems as well.
Body Styles
Globe Style Valve Body
Right Angle Style Valve Body
Y-Pattern Style Valve Body
Ready to order?
Build your part number below, then send your configuration directly to our team.
Why Cryocomp
✓ In-house design & manufacturing
✓Ships from Kenilworth, NJ — fast lead times
✓ Custom configurations available
✓Part of Cryofab — 50+ years cryogenic expertise
Operation types
M Manual
Handwheel, standard
A / B Pneumatic NC / NO
Spring-return; positioners available
E / F Actuated with positioner
With optional filter/regulator
Vacuum Jacket Options
1 Full jacket
Open piping runs, max thermal efficiency
3 Cold box cuff
Panel or cold box wall installations
2 No jacket
Ambient-temp or process service
Part Number Builder
Build your part number: Select options below to configure your C2000 valve.
Format: C2[size][body][conn]-[operation][purge][jacket][feature] Copy the result directly into your quote request or purchase order. Typical lead time for an order is 2–4 weeks. Since some features take longer than others to engineer, lead times can vary.
Flow coefficients (Cv)
Values are for fully open valves. Filter by pipe size to highlight your selection.
| Pipe size | Body style | Cv | Standard end connections |
|---|
Technical Data
- Body material: 304 stainless steel
- Max working pressure: 300 PSI
- Operating temperature: −452 °F to +150 °F
- Operation: Manual · Pneumatic NC/NO · Solenoid · With positioner
- Flow characteristics: Standard · Equal percentage · Linear
- Stem assembly: Field-replaceable without line removal
- Oxygen service: Available — CGA G-4.1 cleaning
- Jacket options: Full · Cold box cuff · No jacket
Applications
- Liquid nitrogen distribution systems
- Liquid argon and liquid oxygen service
- Liquid helium systems
- LNG handling and transfer
- Vacuum jacketed piping systems
- Cold box valve assemblies
- Semiconductor manufacturing
- Medical and MRI systems
- Research and university laboratories
