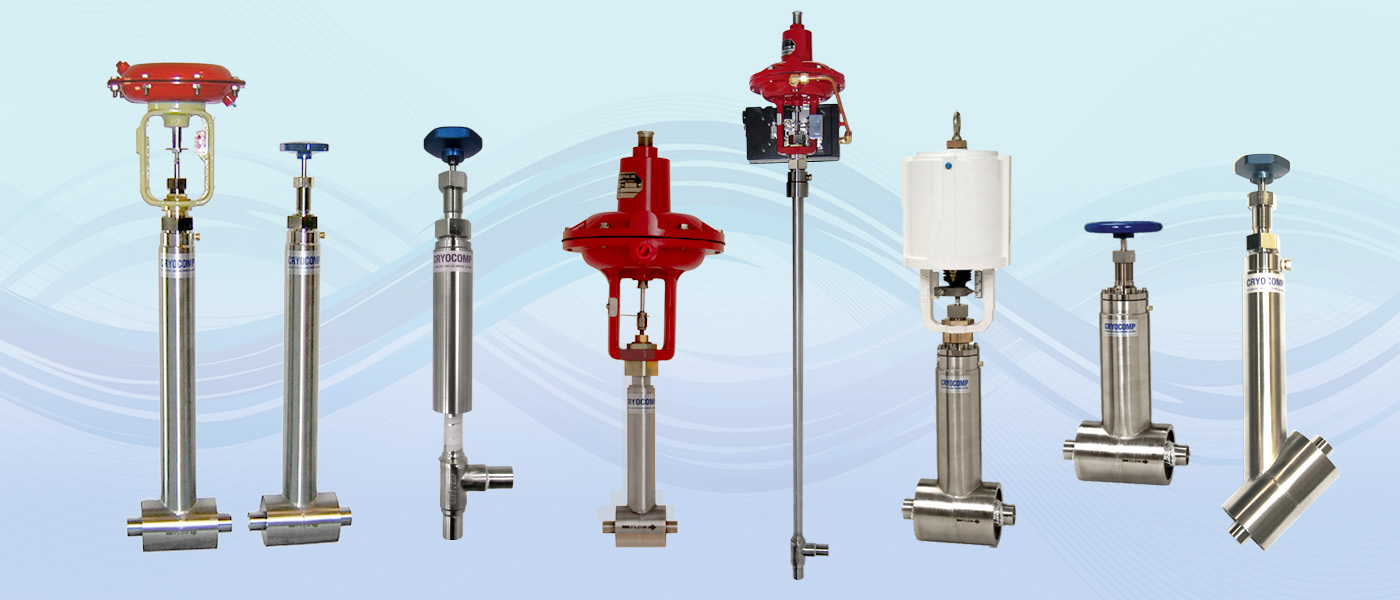

Cryogenic Valves
Vacuum jacketed valve series for all cryogenic liquid service
WHAT ARE CRYOGENIC VALVES?
Cryogenic valves control the flow of liquids such as nitrogen, helium, argon, oxygen, and hydrogen that must be kept at extremely low temperatures to remain liquid. To limit heat transfer, these valves are vacuum jacketed and constructed from stainless steel for reliable performance down to minus 452 degrees Fahrenheit. Cryogenic valves are used in aerospace, medical, industrial gas, pharmaceutical, biopreservation, energy, research, and chemical processing applications wherever these liquids need to be transferred, stored, or controlled.
WHY CHOOSE CRYOCOMP VALVES?
Cryocomp has produced vacuum jacketed cryogenic valves since 1994 and is a product line of Cryofab, Inc., which offers more than 50 years of cryogenic fabrication expertise. Our valves cover pipe sizes from ½ inch to 2 inches and tube sizes from ¼ inch to ½ inch. Available options include full vacuum jackets for open piping, cold box cuffs for panel or wall-mounted installations, and uninsulated versions. Body configurations include globe (T pattern), Y pattern, and right angle designs, with manual or actuated operation to suit different system needs. Standard valves ship with short lead times, and custom assemblies or manifolds are available for specialized requirements.
Need help selecting the right valve series for your application?
Design Resources
Valve Series
1/2" – 2" Pipe | 3 body styles
- Pipe sizes: 1/2", 1", 1½", 2" IPS
- Body styles: Globe, Right angle, Y-pattern
- Jacket: Full, Cold box cuff, None
- Operation: Manual, Pneumatic NC/NO, Solenoid
- 304 SS · 300 PSI max · −452 °F

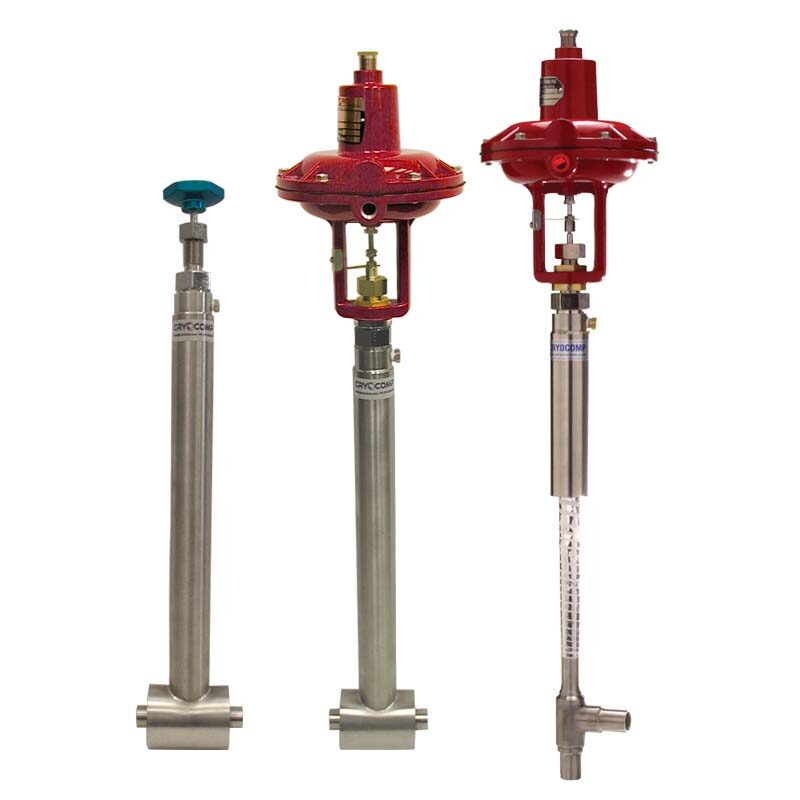

1/2" & 1" Pipe | Extended stem
- Pipe sizes: 1/2" and 1" IPS
- Body styles: Globe, Right angle
- Jacket: Full, Cold box cuff
- Operation: Manual, Pneumatic NC/NO, Solenoid
- Applications: VJ piping, cold boxes, liquefiers
1/4" – 1/2" Tube | Compact
- Tube sizes: 1/4" and 1/2" OD tube ends
- Body styles: Globe, Right angle
- Jacket: Full, Cold box cuff
- Operation: Manual, Pneumatic, Solenoid, Positioner
- Flow plugs: Equal %, Linear (factory option)
Series Comparison
| Feature | C2000 | C3000 | C5000 |
|---|---|---|---|
| Connection type | IPS pipe ends (tube adapters available) | IPS pipe ends (tube adapters available) | OD tube ends |
| Size range | 1/2" – 2" | 1/2" – 1" | 1/4" – 1/2" |
| Body styles | Globe, Right angle, Y-pattern | Globe, Right angle | Globe, Right angle |
| Extended stem / longer heat path | — | ✓ Often preferred for LHe service | — |
| Full vacuum jacket | ✓ | ✓ | ✓ |
| Cold box cuff jacket | ✓ | ✓ | ✓ |
| No jacket (uninsulated) | ✓ | ✓ | ✓ |
| Manual operation | ✓ | ✓ | ✓ |
| Pneumatic actuated (NC & NO) | ✓ | ✓ | ✓ |
| Solenoid + actuator | ✓ | ✓ | ✓ |
| Flow plugs (equal %, linear) | ✓ | ✓ | ✓ |
| In-line stem replacement | ✓ | ✓ | ✓ |
| Oxygen service (CGA G-4.1) | ✓ Specify with order | ✓ Specify with order | ✓ Specify with order |
Compatible Fluids
All cryogenic liquids. Series selection is based on connection type (tube vs pipe) and size, not fluid compatibility.
Liquid helium (LHe)
Liquid argon (LAr)Liquid oxygen (LOx)
Liquid hydrogen (LH₂)
LNG
CO₂
COMMON FEATURES ACROSS ALL SERIES
-
- Vacuum jacketed construction — eliminates condensation and frost, maintains fluid in liquid state during transfer and storage
-
Three jacket configurations — full vacuum jacket for open VJ piping runs, cold box cuff for panel- or wall-mounted installations, and no jacket for process or ambient-temperature service; available across all three series
-
In-line serviceable stem assemblies — stem, seat, and packing replace without removing the valve body from the pipeline, minimizing downtime
-
Extended stem design — operator handle and packing gland remain at ambient temperature, separated from the cryogenic fluid path
-
Stainless steel bodies — maintains integrity and performance at temperatures down to −452 °F
-
Multiple actuation options on the same body — manual, pneumatic NC/NO, and solenoid without requiring a different valve body (series dependent)
-
Oxygen service cleaning available — CGA G-4.1 compliant cleaning on all series; specify when ordering
Not sure which series fits your application? Call +1.908.686.3643 or submit a quote request and our engineers will help you select the right valve. See also: How to Specify a Cryogenic Valve.
