This is a legacy product. The B3000 series has been superseded by the new BM3000 series, which is not a drop-in replacement. The B3000 remains available exclusively for customers with existing B3000 installations who need matching replacement or additional components. If you are starting a new installation, please see the BM3000 series
B3000 Cryogenic Pipe Bayonet SeriesLEGACY
Legacy Vacuum Jacketed Bayonet for Cryogenic Piping Systems
The Cryocomp B3000 series is a legacy pipe-size cryogenic bayonet assembly for vacuum-jacketed transfer lines and vacuum-insulated piping systems. This series is maintained for customers with existing B3000 installations and is no longer recommended for new system designs. For new installations, please refer to the BM3000 series.
Available in ½”, ¾”, and 1″ pipe sizes with a 150 PSI MAWP, the B3000 utilizes a close-tolerance fit between male and female components to establish a vapor lock seal — eliminating the need for a nose seal. The design delivers frost-free transfers, minimal heat leak, and easy disassembly via a V-band clamp closure.
The B3000 series operates efficiently in both vertical (male on top) and horizontal orientations.

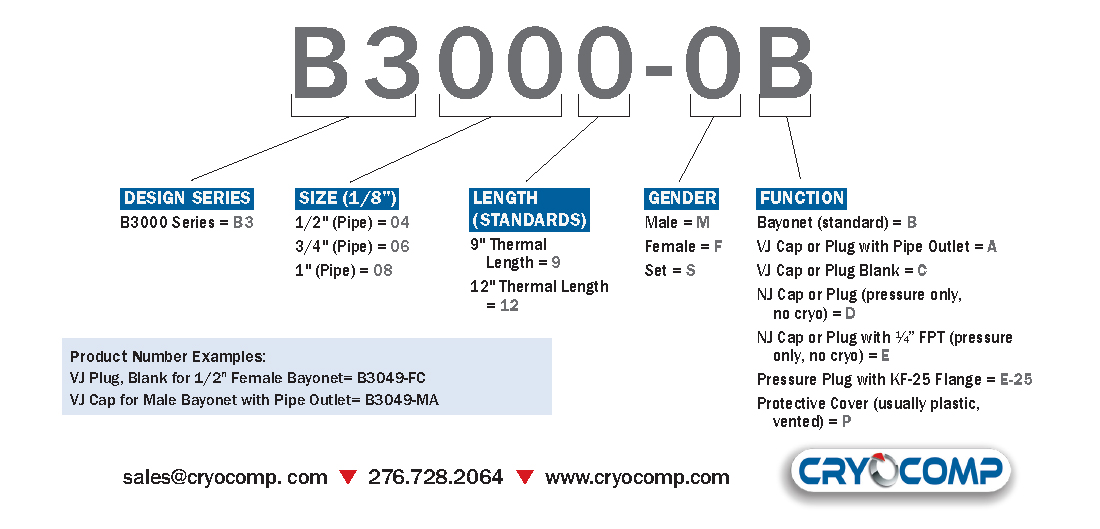

A complete assembly includes a male and female bayonet, V-band clamp, and O-ring. Complete assemblies can be ordered by adding “SB” to the part number (e.g., B3049-SB).

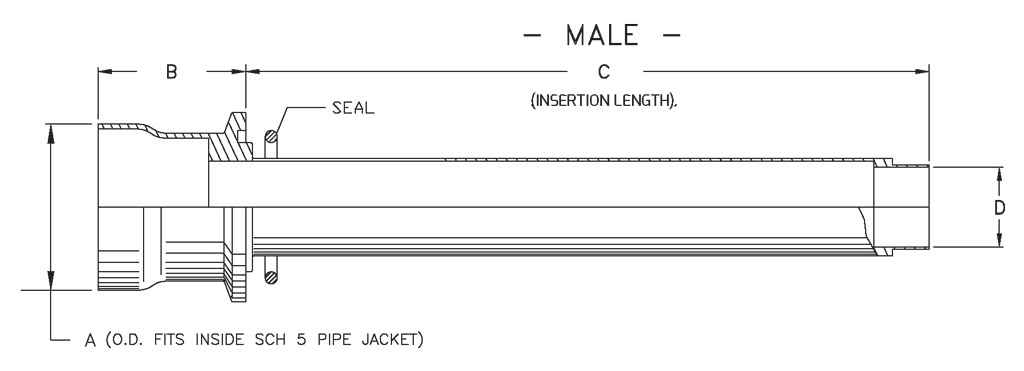

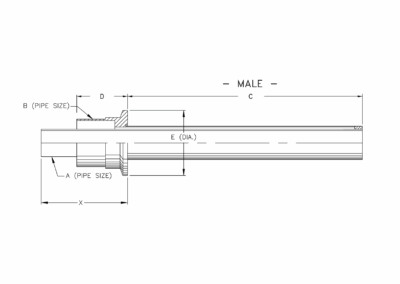

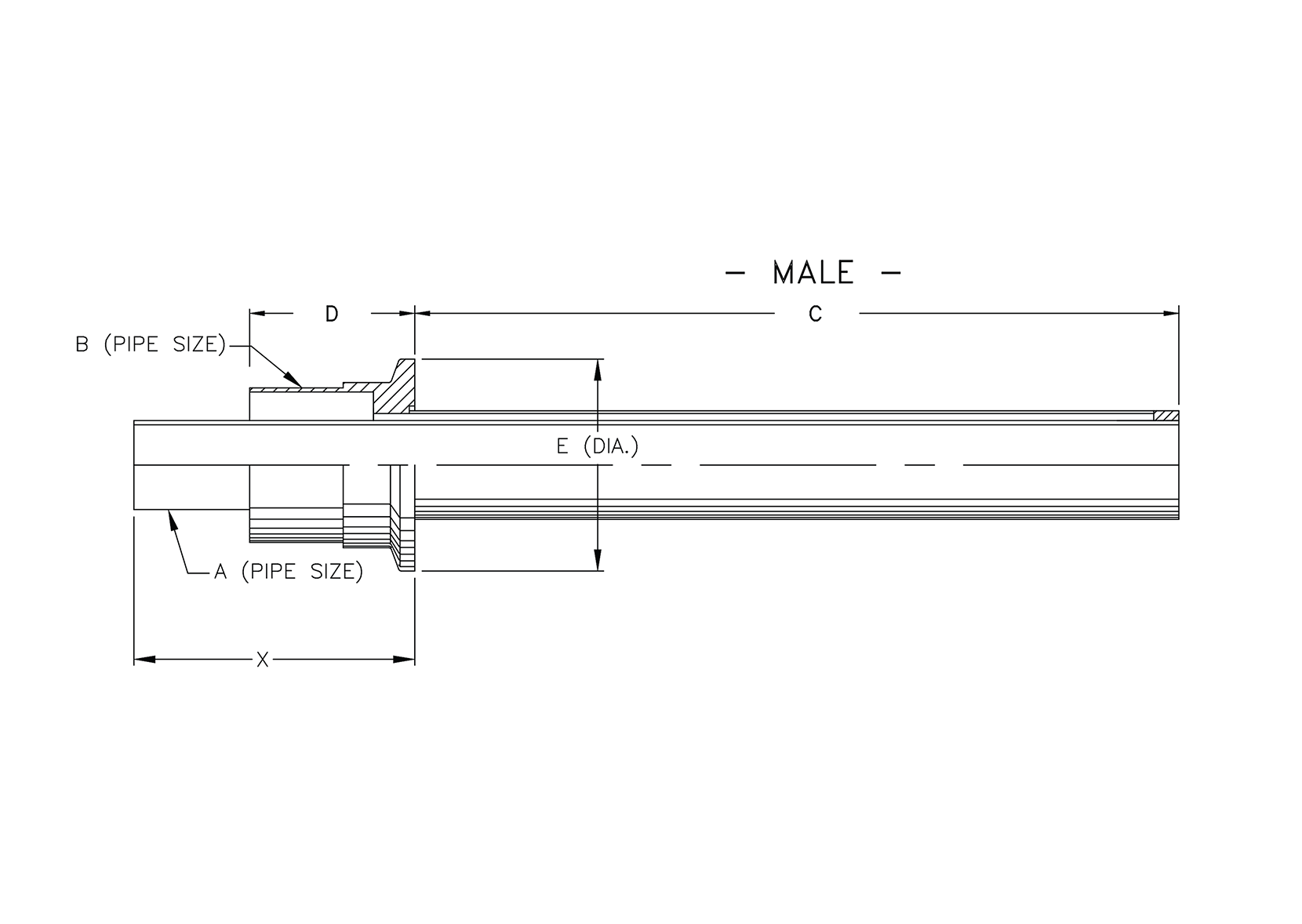

B3000 Legacy Series | Male Bayonet

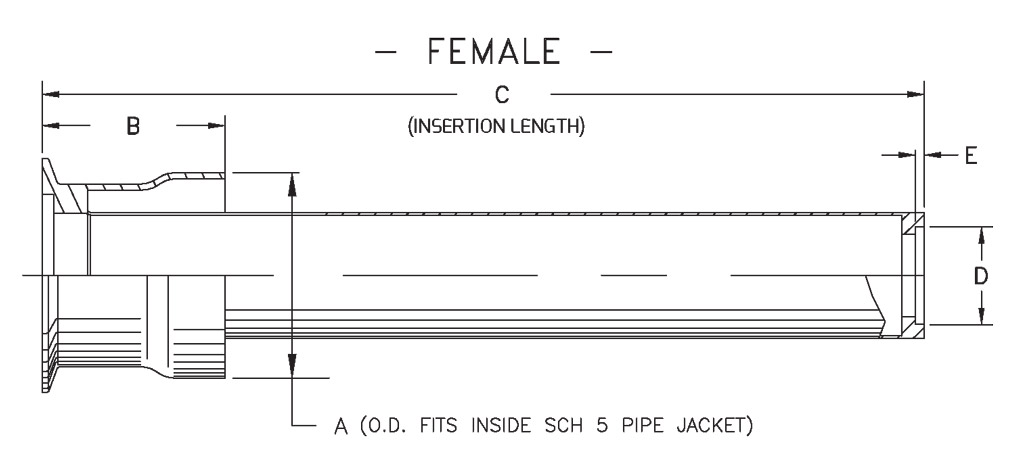

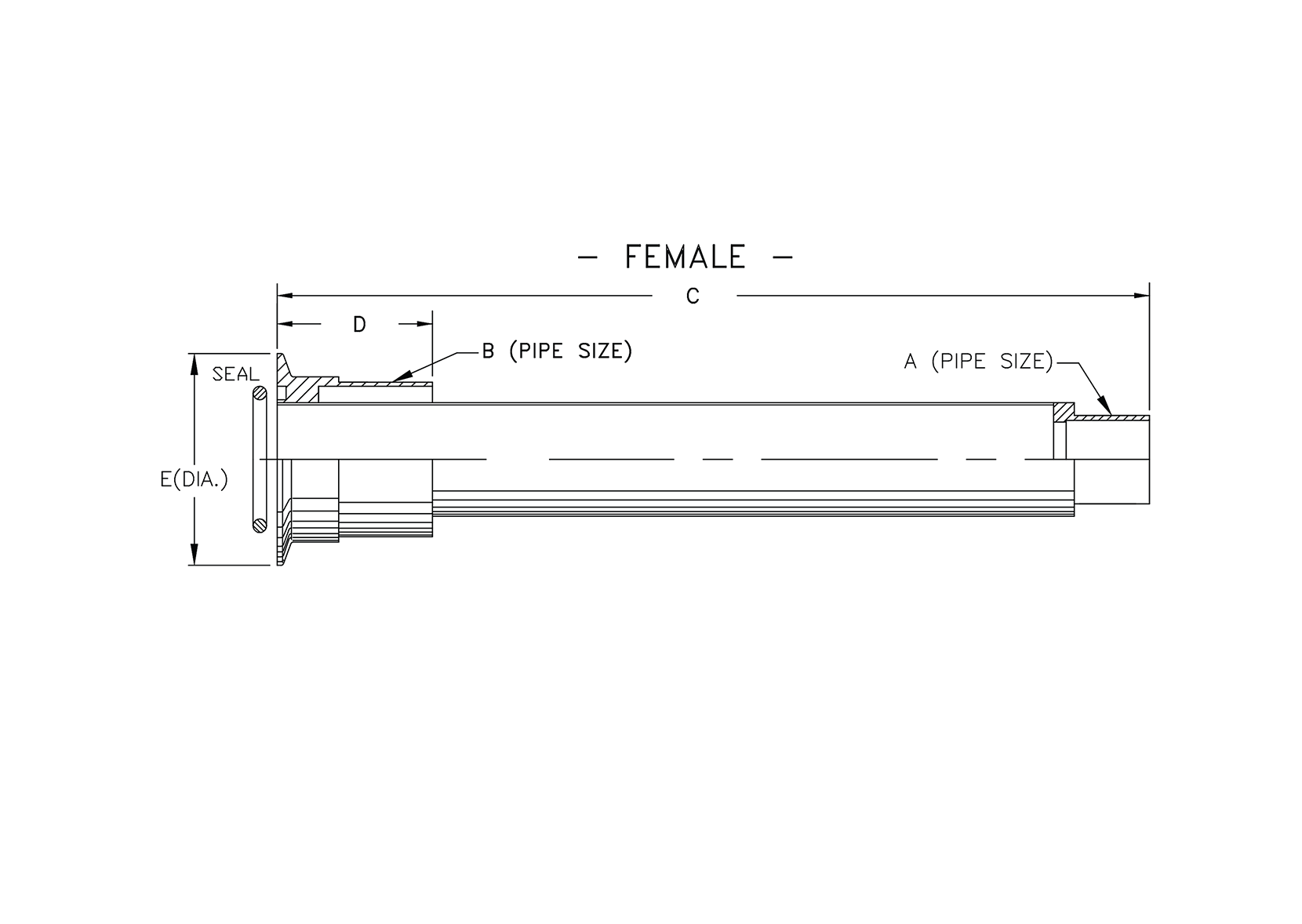

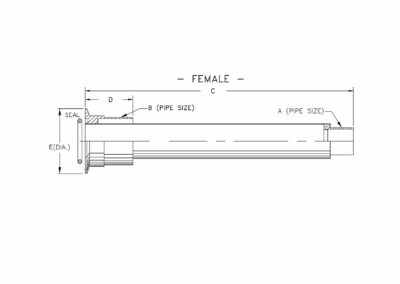

B3000 Legacy Series | Female Bayonet
½” IPS BAYONETLEGACY
- Part no. B3049-MB
- Type Male
- Pipe Size ½” IPS
- Length 9″
- A 2.21″
- B 3.50″
- C 9.24″
- D 0.85″
- E —
- Seal 2-224
- Part No. B3049-FB
- Type Female
- Pipe Size ½” IPS
- Length 9″
- A 2.21″
- B 3.50″
- C 9.65“
- D 0.85″
- E 0.10″
- Clamp B3049-VB
- Part no. B30412-MB
- Type Male
- Pipe Size ½” IPS
- Length 12″
- A 2.21″
- B 3.50″
- C 12.24″
- D 0.85″
- E —
- Seal 2-224
- Part No. B30412-FB
- Type Female
- Pipe Size ½” IPS
- Length 12″
- A 2.21″
- B 3.50″
- C 12.65″
- D 0.85″
- E 0.10″
- Clamp B3049-VB
½” IPS COMPONENTS
| Part No. | Type | Pipe Size | Length | A (in) | B (in) | C (in) | D (in) | E (in) | Seal / Clamp |
|---|---|---|---|---|---|---|---|---|---|
| B3049-MB | Male | ½” IPS | 9″ | 2.21 | 3.50 | 9.24 | 0.85 | — | Seal: 2-224 |
| B3049-FB | Female | ½” IPS | 9″ | 2.21 | 3.50 | 9.65 | 0.85 | 0.10 | Clamp: B3049-VB |
| B30412-MB | Male | ½” IPS | 12″ | 2.21 | 3.50 | 12.24 | 0.85 | — | Seal: 2-224 |
| B30412-FB | Female | ½” IPS | 12″ | 2.21 | 3.50 | 12.65 | 0.85 | 0.10 | Clamp: B3049-VB |
¾" IPS BAYONETLEGACY
- Part no. B3069-MB
- Type Male
- Pipe Size ¾” IPS
- Length 9″
- A 2.21″
- B 3.50″
- C 9.24″
- D 1.07″
- E —
- Seal 2-224
- Part No. B3069-FB
- Type Female
- Pipe Size ¾” IPS
- Length 9″
- A 2.21″
- B 3.50″
- C 9.65“
- D 1.07″
- E 0.10″
- Clamp B3049-VB
- Part no. B30612-MB
- Type Male
- Pipe Size ¾” IPS
- Length 12″
- A 2.21″
- B 3.50″
- C 12.24″
- D 1.07″
- E —
- Seal 2-224
- Part No. B30612-FB
- Type Female
- Pipe Size ¾” IPS
- Length 12″
- A 2.21″
- B 3.50″
- C 12.65″
- D 1.07″
- E 0.10″
- Clamp B3049-VB
¾” IPS COMPONENTS
| Part No. | Type | Pipe Size | Length | A (in) | B (in) | C (in) | D (in) | E (in) | Seal / Clamp |
|---|---|---|---|---|---|---|---|---|---|
| B3069-MB | Male | ¾” IPS | 9″ | 2.21 | 3.50 | 9.24 | 1.07 | — | Seal: 2-224 |
| B3069-FB | Female | ¾” IPS | 9″ | 2.21 | 3.50 | 9.65 | 1.07 | 0.10 | Clamp: B3049-VB |
| B30612-MB | Male | ¾” IPS | 12″ | 2.21 | 3.50 | 12.24 | 1.07 | — | Seal: 2-224 |
| B30612-FB | Female | ¾” IPS | 12″ | 2.21 | 3.50 | 12.65 | 1.07 | 0.10 | Clamp: B3049-VB |
1″ IPS BAYONETLEGACY
- Part no. B30812-MB
- Type Male
- Pipe Size 1″ IPS
- Length 12″
- A 2.69″
- B 3.50″
- C 12.24″
- D 1.32″
- E —
- Seal 2-329
- Part No. B30812-FB
- Type Female
- Pipe Size 1″ IPS
- Length 12″
- A 2.69″
- B 3.80″
- C 12.65“
- D 1.32″
- E 0.10″
- Clamp B30812-VB
1″ IPS COMPONENTS
| Part No. | Type | Pipe Size | Length | A (in) | B (in) | C (in) | D (in) | E (in) | Seal / Clamp |
|---|---|---|---|---|---|---|---|---|---|
| B30812-MB | Male | 1″ IPS | 12″ | 2.69 | 3.50 | 12.24 | 1.32 | — | Seal: 2-329 |
| B30812-FB | Female | 1″ IPS | 12″ | 2.69 | 3.80 | 12.65 | 1.32 | 0.10 | Clamp: B30812-VB |
LEGACY PRODUCT
The B3000 series has been superseded by the BM3000 series. If you are planning a new installation, please use the BM3000. The B3000 is available only for existing installations. View BM3000 Series
Need help selecting the right bayonet for your system?
Quick Specs
Sizes: ½” & 1″ IPS
Lengths: 9″ (½”, ¾”) | 12″ (1″)
MAWP: 150 PSI
Closure: V-Band Clamp
Orientation: Vertical or Horizontal
Technical Data
- Highly efficient and reliable close-tolerance design for vertical or horizontal applications
- Designed for fast and convenient installation for piping fabricators
- No clamshell required
- MAWP: 150 PSI
- All internal components leak tested to 1×10-9 SCC GHe/SEC
- Convenient V-band closure
Applications
- Vacuum insulated flex lines
- Cold box interface connections
- Tank and truck fill connections
- Typically used with liquid nitrogen, liquid hydrogen, and liquid helium; may be used with liquid oxygen with proper cleaning
B3049 & B3069 (½" and ¾")
• 9" insertion length heat leak = 8.4 BTU/HR
• 12" insertion length heat leak = 6.3 BTU/HR
B30812 (1.0")
• 12" insertion length heat leak = 10.3 BTU/HR
Cooldown Mass: 0.8 LBS.
Ordering Complete Assemblies
Each size is available as individual male or female components, or as a complete set. A complete assembly includes the male bayonet, female bayonet, V-band clamp, and O-ring.
To order a complete set, append “SB” to the part number — for example, B3049-SB for the complete ½" × 9" assembly.
Call 1.908.686.3643 for more information or assistance.
