Design Options for Cryogenic Valves

Cryocomp cryo valves are made to meet your specifications. We offer options for the valve body style, vacuum insulation, characterized flow, and automated operation.

Cryocomp Makes Valves in Three Body Shapes

Choose from globe, right angle, or y-pattern body style to fit your piping configuration. To find the best fit for your piping layout, see all the Cryocomp valves listed by body style.

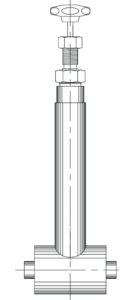

cryogenic valve with globe style body
Globe
vacuum jacketed valve with right angle style body
Right Angle

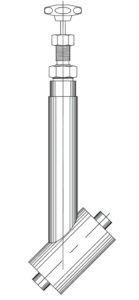

cryo valve with y-pattern valve body
Y-Pattern

Vacuum Insulation Options

Insulation is key to keeping liquid gases at cryogenic temperatures and protecting the valve operation, but a full jacket may not be right for all installations. Cryocomp valves can be made with full vacuum jackets, cold box cuffs, or without a jacket.

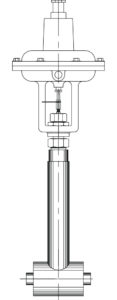

full vacuum jacketed valve
Vacuum Jacket

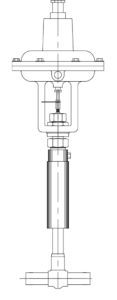

valve with cold box cuff insulation
Coldbox Cuff

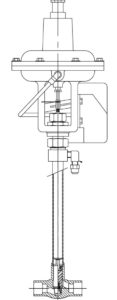

valve with no vacuum insulation
No Insulation

Characterized Flow for Cryogenic Control Valves

Cryocomp valves can be made with equal percentage or linear lift-to-flow ratios. If you have questions about the best choice for your project, the factory can provide more information.

characterized flow plug

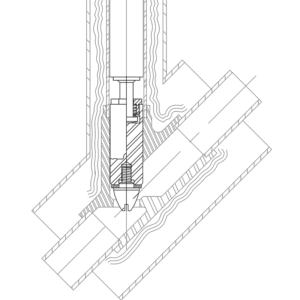

Characterized Flow Plugs
Flow characteristic curves

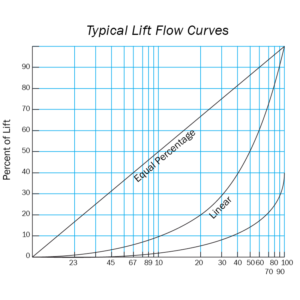

Typical Lift Flow Curves

Automated Valve Operation

Cryocomp makes simple, durable, manual valves. If your cryogenic system requires automation, we make reliable pneumatic and solenoid valves. Additional automation choices for cryogenic control valves include positioners and limit switches.

actuated valve
Actuator

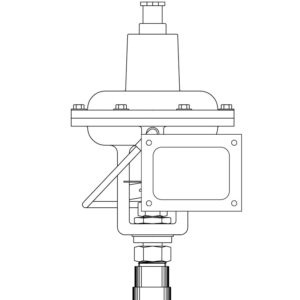

actuated valve with positioner
Actuator with Positioner I-P and P-P

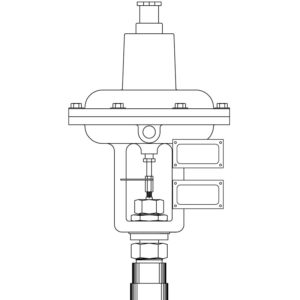

cryo valve with limit switches
Limit Switches

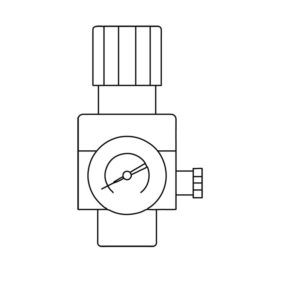

filter regulator
Filter Regulator
cryogenic solenoid valve

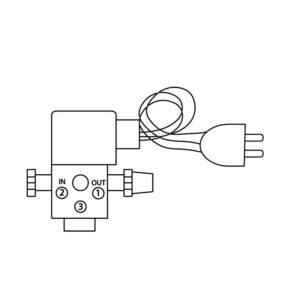

Solenoid Valve

To order custom cryogenic valves, see our part numbering system and all the options available from Cryocomp. We’re always happy to answer any questions contact sales@cryofab.com.
