Cryocomp B3000 Cryogenic Bayonet series assemblies offer low heat leak and quick solution field installation. Our high-efficiency tube & pipe connection is ideal for vacuum-jacketed transfer lines and vacuum-insulated piping systems.
Line: Cryogenic Bayonets - B3000 Series

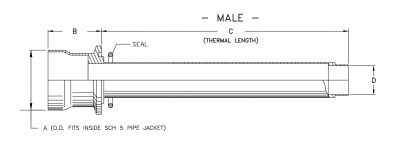

Cryocomp’s B3000 Cryogenic Bayonet series is a high-efficiency tube & pipe connection for vacuum-jacketed transfer lines and vacuum-insulated piping systems. The assemblies range from 1/2″ tube to 1″ pipe with a 150 PSI MAWP. The design utilizes an extremely close tolerance fit between the male and female components establishing a gas pocket (vapor lock) between the components to form a seal, which is a process stream temperature at one end and ambient at the other. The very small gas pocket and thin stainless elements
contribute to the high efficiency of the design. The close tolerance design eliminates the necessity of a nose seal. Other
advantages are frost-free transfers, minimization of heat leak, and easy disassembly. The pipe product line connects with a
clamping system for continuous leak-free operation.
