Cryogenic Valve Model C5043-P11


1/2" ODT Cryogenic Actuated Valve with Y-Pattern body

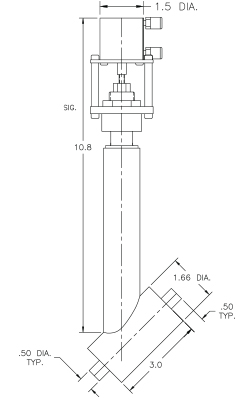

cryogenic-valve-c5043-p11-drawing

Note: minimum order required for y-pattern series 5000 valves. Contact sales@cryocomp.com or call +1 276.728.2064 for more information.

Product Sheet

Features

  • Double Acting Cylinder Actuator Use 60—80 PSIG
    w/Flow Over Seat
  • Upper Seal Assembly Vacuum Tight
  • Spring Loaded Dual 0-Ring Shaft Seal
  • All Stainless Steel Body and Jacket
  • Low Heat Transfer Stem Assembly
  • KEL-F Seat Seal
  • Contoured Flow Plugs Available
  • MLI Insulation on Jacketed Valves

Technical Data

  • Max. Operating Pressure 150 PSIG
  • Seat Seal & Packing Leak Test Bubble Tight @ 150 PSIG @ ambient temperature
  • Proof Pressure 225 PSIG. @ Ambient Temperature
  • Adapters Available for Smaller Sizes
  • See P/N C1000KIT for Pneumatic Actuator Adapter Kit
  • Heat Leak: 2.4 BTU/HR to 77° k.
    Heat Leak: 3.1 BTU/HR to 4º k
  • Cooldown Mass = 3.1 OZ

Applications

  • Vacuum Jacketed Piping
  • Cold Boxes
  • Helium Transfer Lines
  • Cryogenic Piping Systems
